VHF NMEA 0183 – SeaTalkng converter kit

VHF NMEA 0183 – Seatalk NG konverter võimaldab STNG võrgust saata positsiooni infot (koordinaate) vanemasse, ainult NMEA0183 liidesega VHF raadiosse. NB! Konverter on ühesuunaline, signaal liigub ainult STNG (NMEA2000) võrgust VHF raadiosse ja Baud Rate on 4800. Kahepoolset konverteerimist ei toimu.

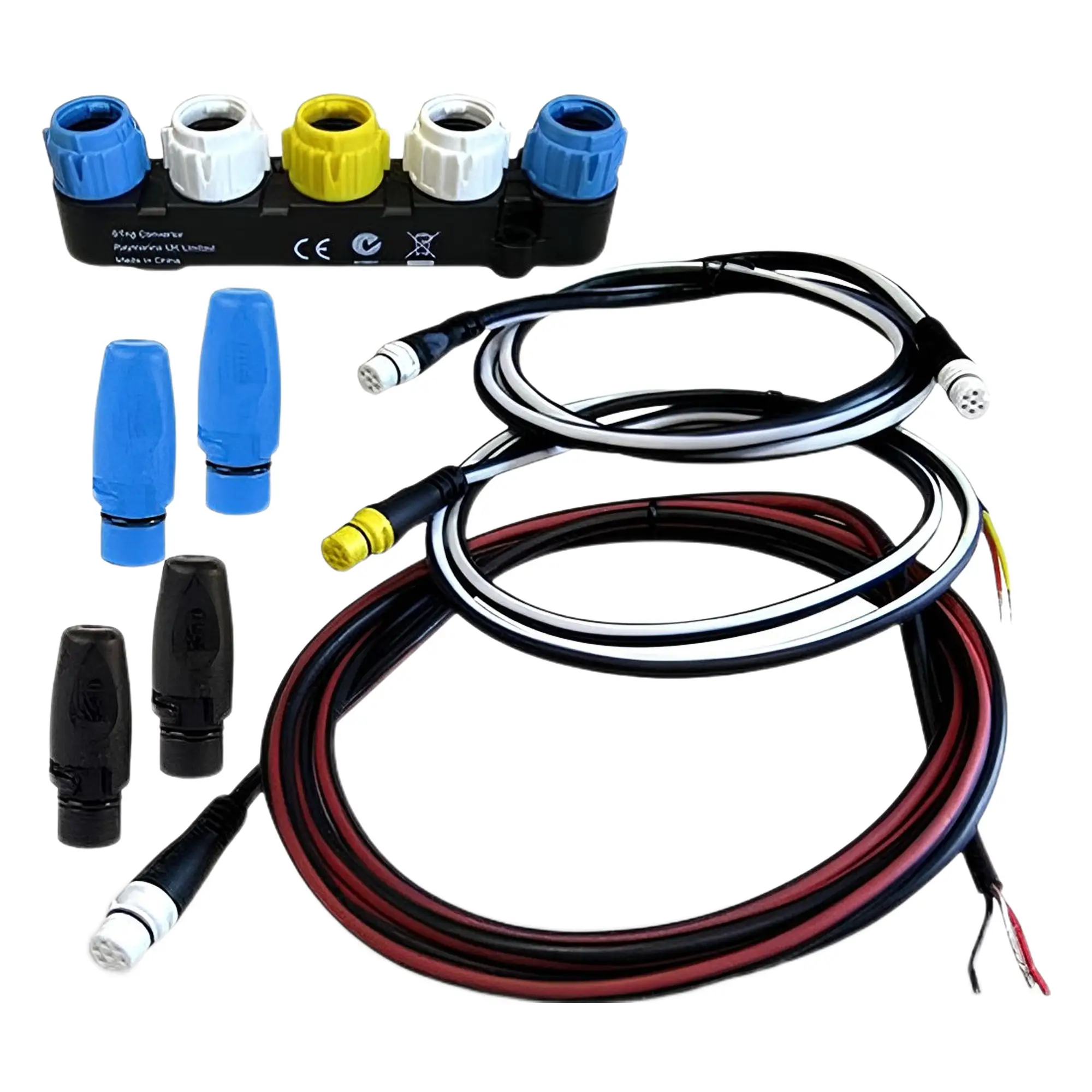

What's in the box

• NMEA 0183 – STng adapter cable
• SeaTalkng BackBone terminator (x2)
• SeaTalkng dimmer switch (x2)
• SeaTalkng extension cable – 1 m
• SeaTalkng to it cable
• Polyethylene bag 279 × 203
• ST1 – STNG converter user CD
• NMEA0183 STng converter installation guide

All Raymarine SeaTalk NG cables and connectors are colour-coded:

The blue connector slot is suitable for a blue/black cable, which is the BackBone or main cable, also known as: Trunk Cable. The white connector slot is suitable for a white/black cable, which is the SPUR or branch cable, also known as: Drop Cable (Drop Trunk Cable). The wrong cable will not fit into the wrong slot. When preparing for installation, make a plan so that a BackBone cable of the appropriate length runs to all locations where STNG (NMEA 2000) devices are to be installed. At important points, leave a break where a T-connector or 5-Way connector can be installed, and no instrument connected by a branch cable to a connector on the BackBone should be more than 5m away.

Instructions:

Download STNG to NMEA0183 guide

Download STNG Network General Guide
